| Model: | BR DG-11 | Range: | 14.7 PSIV to 100 PSI, to 5000 PSI (PSIA or PSIG) | Warranty: | Product Warranty |

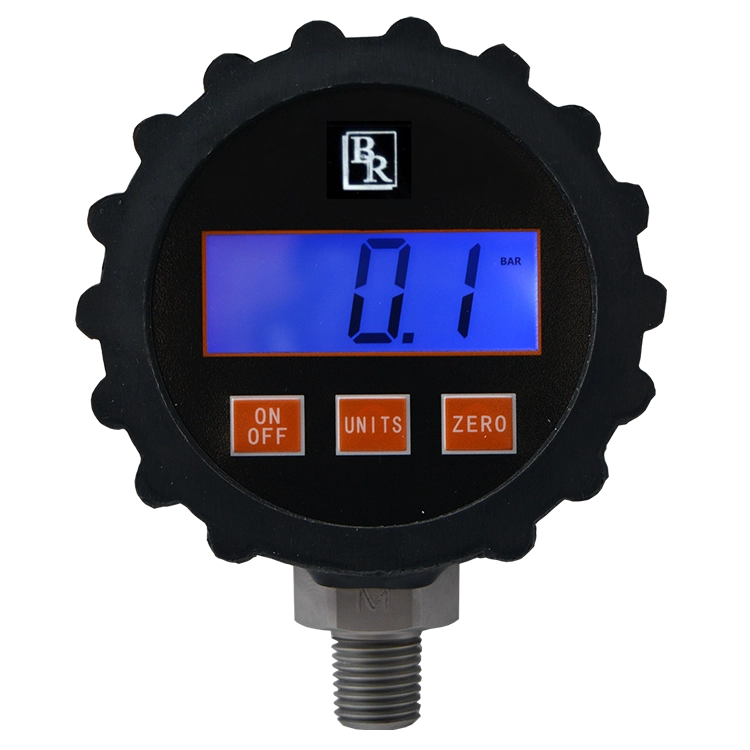

Model BR DG-11 Digital Pressure Gauge
FEATURES:
• Simple two-button operation
• Zero reset button
• Auto restore for last pressure reading
• Back-lit LCD display
• Overload display function
• 14.7 PSIV to 100 PSI, to 5000 PSI (PSIA or PSIG)
Model BR DG-11 Digital Pressure Gauge
FEATURES:
• Simple two-button operation
• Zero reset button
• Auto restore for last pressure reading
• Back-lit LCD display
• Overload display function
• 14.7 PSIV to 100 PSI, to 5000 PSI (PSIA or PSIG)
| Gauge Pressure Ranges |
|---|
| Model: | BR-SP | Range: | 60-2,000 PSI - BRASS; 3,000 PSI and above - 304SS | Warranty: | Product Warranty |
Model BR-SP Spiral Tube Gauge Features:
• Reliable, small diameter, low profile gauge • Sizes: 1″ (25mm) to 1.5″ (40mm) • ⅛” NPT Socket • Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement • Safety over-pressure port on the lens • “Use No Oil” for use in oxygen service
• ASMEB40.100 Compliant • UL Listed for 1.25″ and 1.5″ gauges
| Model: | Model BR901 | Range: | 30/0" VAC through 0/10,000 - See Data Sheet For Full List of Ranges | Warranty: | Product Warranty |
Model BR901 Forged Brass Case Gauge from Blue Ribbon Corp is a high quality line of glycerin filled gauges for use in mining and automotive hydraulic systems and heavy vibration areas.
Learn More
| Model: | Model BRLF100D | Range: | 30/0" VAC through 0/10,000 - See Data Sheet For Full List of Ranges | Warranty: | Product Warranty |
Model BRLF100D Lead Free Steel Utility Gauge
FEATURES:
• Lead Free steel utility gauge with brass socket and movement
• Dial Sizes: 1½”, 2″, 2½”, and 4″
• An inexpensive utility gauge for the broad commercial market
• Suitable for air, water, oil, gas or any other media not corrosive to brass
• Available in bottom or center connect 1/8″ or ¼” (M) NPT
| Model: | Model BR250L | Range: | 30/0" VAC through 0/15,000 - See Data Sheet For Full List of Ranges | Warranty: | Product Warranty |
Model BR250L Stainless Steel Liquid Filled Gauges from Blue Ribbon Corp is a high quality line of liquid filled gauges. Its crimped, welded stainless steel bezel and glycerine fill is designed for gas or liquid applications that require damping.
Learn More
| Model: | Model BRLF200 | Range: | 30/0" VAC through 0/15,000 - See Data Sheet For Full List of Ranges | Warranty: | Product Warranty |
Model BRLF200 Lead Free Liquid Filled Pressure Gauge from Blue Ribbon Corp is an accurate, bottom connected, liquid-filled pressure gauge. Its lead free construction allows it to be specified within drinking water pump, pipeline, and filtration system installations or anywhere that the mitigation of lead contamination risk is a concern.
Learn More
| Model: | BR660 | Range: | 30" Hg Vac to 0/600 - See Data Sheet for Full List of Ranges | Warranty: | Product Warranty |
Model BR660 Back Flanged Gauge Series from Blue Ribbon Corp is a heavy duty, accurate, and highly reliable gauge for the mechanical, commercial, and industrial markets. The cast aluminum case and integral back flange are designed to ensure the Model BR660 will withstand the most rigorous environments.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your Blue Ribbon Corp Factory Rep or Local Distributor using the links below.
