| Product Specs | |
|---|---|
| Model: BR1002/1003-CA | |
| Range: 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR), gauge, vacuum, and absolute pressure reference available | |
| Range: 0 to 15 thru 0 to 10K PSI (1,034 thru 689 BAR), gauge, vacuum, and absolute pressure reference available | |
| Electrical: • Supply Voltage: 9 to 36 Vdc | |
| Static Accuracy: ±0.5% FSO | |
| Materials of Construction: Wetted Parts: 316 stainless steel and 17-4 stainless stee | |
| Mechanical: Process Connection: ¼” NPT (M) standard (options available) | |
| Returns not covered by warranty are subject to 20% restock fee. | |

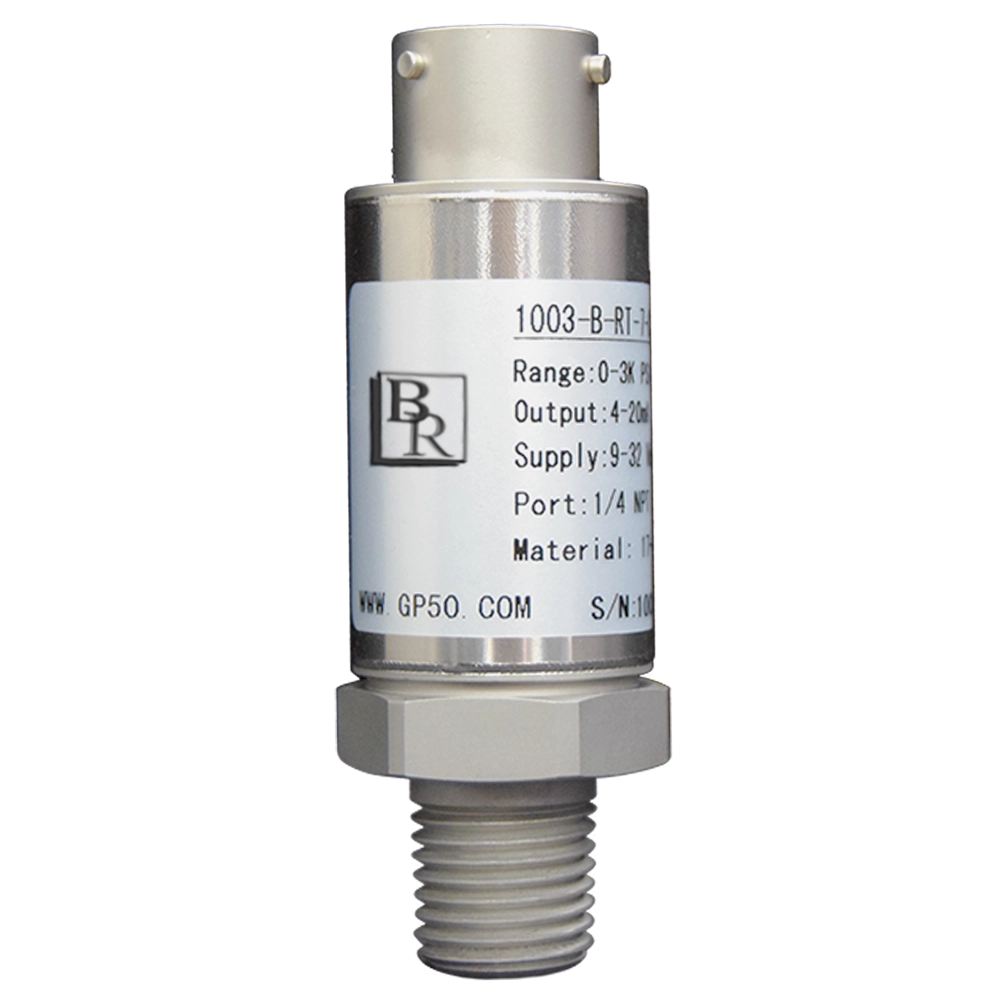

The Model BR1002/1003-CA Low-Cost OEM Pressure Transducer from Blue Ribbon Corp is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc or 0 to 10 Vdc output, as well as various electrical connection and pressure port options. Typical applications for the Model BR1002/1003-CA include offroad vehicle, HVAC/R, hydraulic and pneumatic control systems, pumps and compressors, and industrial engine pressure monitoring.
The Model BR1002/1003-CA Low-Cost OEM Pressure Transducer from Blue Ribbon Corp is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc or 0 to 10 Vdc output, as well as various electrical connection and pressure port options. Typical applications for the Model BR1002/1003-CA include offroad vehicle, HVAC/R, hydraulic and pneumatic control systems, pumps and compressors, and industrial engine pressure monitoring.
Items reflect current stock on hand. Current stock will ship within 2 business days and any amount ordered in excess of current stock will be placed on back order with a 4-5 week lead time.
