| Model: | Model BR100D | Range: | 30/0" VAC through 0/10,000 - See Data Sheet For Full List of Ranges | Warranty: | Product Warranty |

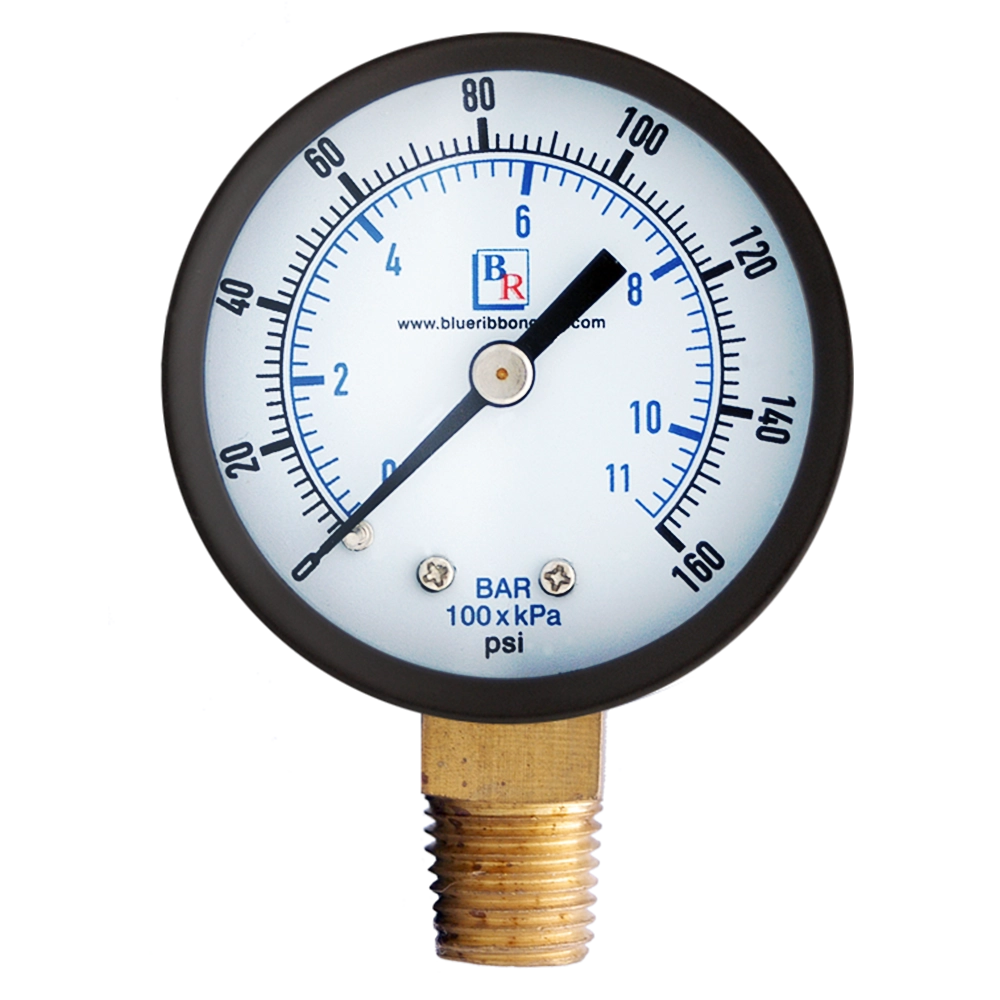

Model BR100D Steel Utility Gauge FEATURES:
• Dial Sizes: 1½”, 2″, 2½”, and 4″
• An inexpensive utility gauge for the broad commercial market
• Suitable for air, water, oil, gas or any other media not corrosive to brass
• Available in bottom or center connect 1/8″ or ¼” (M) NPT
• Accuracy: 3-2-3%
Model BR100D Steel Utility Gauge
FEATURES:
• Dial Sizes: 1½”, 2″, 2½”, and 4″
• An inexpensive utility gauge for the broad commercial market
• Suitable for air, water, oil, gas or any other media not corrosive to brass
• Available in bottom or center connect 1/8″ or ¼” (M) NPT
• Accuracy: 3-2-3%
| Gauge Pressure Ranges | |
|---|---|
| Markets |
| Model: | Model BR1002/1003-CA | Range: | 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR), gauge, vacuum, and absolute pressure reference available | Warranty: | Product Warranty |
The Model BR1002/1003-CA Low-Cost OEM Pressure Transducer from Blue Ribbon Corp is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc or 0 to 10 Vdc output, as well as various electrical connection and pressure port options. Typical applications for the Model BR1002/1003-CA include offroad vehicle, HVAC/R, hydraulic and pneumatic control systems,
pumps and compressors, and industrial engine pressure monitoring.
| Model: | Model BRLF200 | Range: | 30/0" VAC through 0/15,000 - See Data Sheet For Full List of Ranges | Warranty: | Product Warranty |
Model BRLF200 Lead Free Liquid Filled Pressure Gauge from Blue Ribbon Corp is an accurate, bottom connected, liquid-filled pressure gauge. Its lead free construction allows it to be specified within drinking water pump, pipeline, and filtration system installations or anywhere that the mitigation of lead contamination risk is a concern.
Learn More
| Model: | Series 6000 Diaphragm Seal | Warranty: | Product Warranty |
Series 6000 Diaphragm Seal from Blue Ribbon Corp is a lightweight, all-stainless steel, welded one-piece diaphragm seal or isolation device, used to provide economical protection of pressure sensing instrumentation from measured media. The Series is designed for small instrumentation ranging from vaccuum to 2500 PSI. It also provides protection for gauges and measuring instruments in dial sizes ranging from 1½” to
3½”, as well as in space-limited applications.
| Model: | Model 313AI | Range: | • 0 to 2 PSI thru 0 to 300 PSI (138 mBAR thru 21 BAR) • 0 to 4 FTWC thru 0 to 700 FTWC (1219 mm thru 213 m WC) | Warranty: | Product Warranty |
Model 313AI | Submersible Level Transmitter for Hazardous Locations is an ATEX intrinsically safe submersible level transmitter, providing high-accuracy level measurements for hazardous locations. The corrosion-resistant 316L stainless steel construction, integrated lightning suppression and hydrophobic breather vent help provide years of maintenance-free service.
Learn More
| Model: | Series 5000 Stainless Steel Diaphragm Seal | Warranty: | Product Warranty |
Series 5000 Stainless Steel Diaphragm Seal from Blue Ribbon Corp are diaphragm seals or isolation devices used to provide economical protection of pressure sensing instrumentation from measured media. The Series is designed with a stainless steel diaphragm for small to medium instrumentation ranging from 30 to 2500 PSI. The Series 5000 provides ultimate protection for gauges and measuring instruments thru 2½” dial sizes in applications where space is at a premium.
Learn More
| Model: | Model BR913 | Range: | 0-30" WC to 0-700 feet WC (762 mm to 213.4 meters WC) | Warranty: | Product Warranty |
Model BR913 from Blue Ribbon Corporation is a high-accuracy submersible level transmitter. It features an asynchronous serial communication output (SDI12-v 1.3), typically used to monitor environmental data. This also allows for communication with compatible data loggers or data acquisition systems. The incorporation of a hydrophobic breather vent ensures extended trouble-free service within demanding applications. These features, combined with the low power requirements of the Model 913, make it particularly ideal for remote well monitoring applications.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your Blue Ribbon Corp Factory Rep or Local Distributor using the links below.
