| Model: | Model BR1112-1113 | Range: | • 0 to 1.4 PSI thru 0 to 285 PSI (100 mBAR thru 20 BAR) • 0 to 40" wc thru 0 to 650 ftwc (1 mwc thru 200 mwc) | Warranty: | Product Warranty |

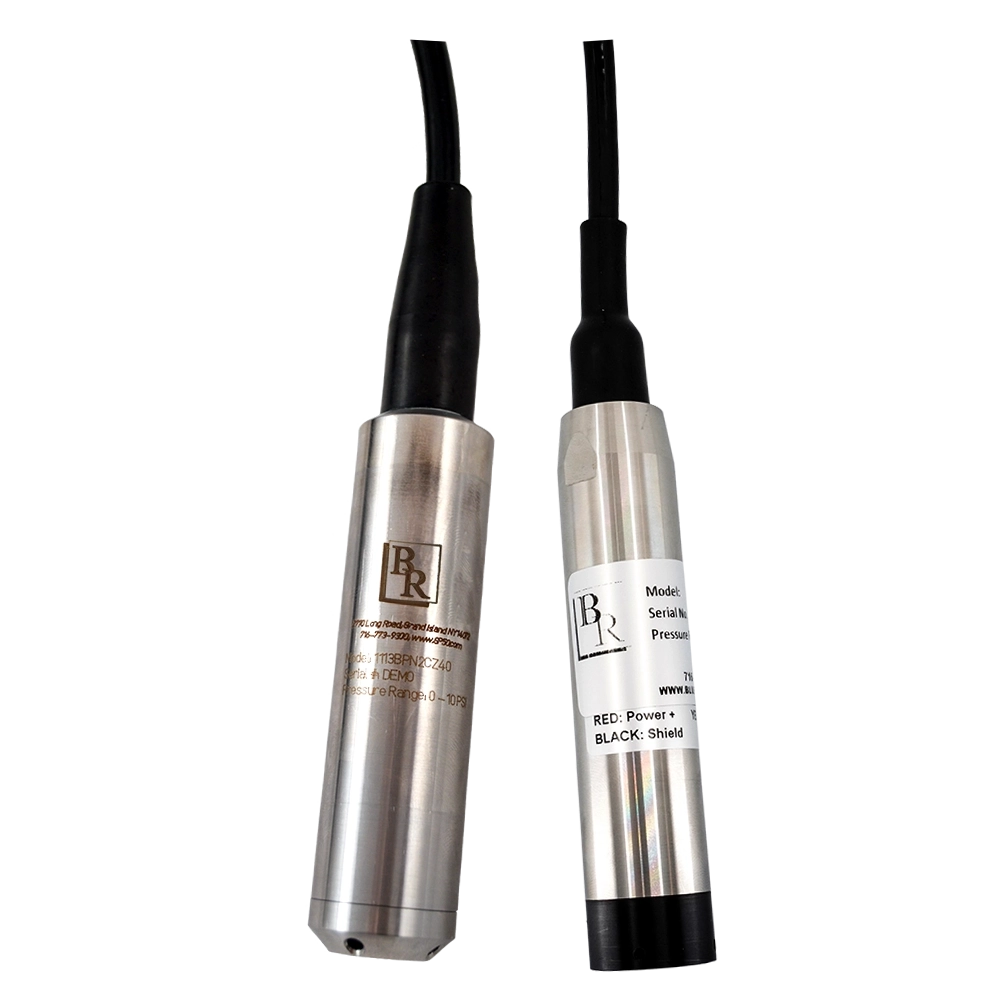

Model BR1112-1113 Low-Cost Submersible Level Transmitter from Blue Ribbon Corp is a family of submersible level transmitters, designed to provide high-accuracy measurements at a competitive price point. They are offered with an all stainless steel sensor with removeable sludge nose which allows for periodic maintenance and cleaning for extended corrosion-free service life.
Model BR1112/1113 from Blue Ribbon Corp is a family of submersible level transmitters, designed to provide high-accuracy measurements at a competitive price point. They are offered with an all stainless steel sensor with removeable sludge nose which allows for periodic maintenance and cleaning for extended corrosion-free service life.
| Markets | |
|---|---|
| Transmitter Pressure Ranges |
| Model: | Model BR313L | Range: | 0-20” WC thru 0 to 300 PSI (0-50 MBAR thru 0-21 BAR) | Warranty: | Product Warranty |
Model BR313L Submersible Level Transmitter from Blue Ribbon Corp is a line of accurate and reliable submersible level transmitters. The corrosion-resistant 316L stainless steel construction and an integrated hydrophobic breather vent helps to provide years of maintenance-free service life.
Learn More
| Model: | MODELS 111X/P, 211X/P, 311X/P & 311N/AN/GN | Range: | 0 to 5 PSI thru 0 to 75K PSI (0 to 0.3 BAR thru 0 to 5,171 BAR) (PSIG, PSIS, PSIA, PSIV & compound ranges available) | Warranty: | Product Warranty |
Blue Ribbon Model 11 Series provides a rugged solution in hazardous approved areas. The all welded, stainless steel design provides years of reliable service in some of the harshest applications.
Learn More
| Model: | Model BR1002/1003-CA | Range: | 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR), gauge, vacuum, and absolute pressure reference available | Warranty: | Product Warranty |
The Model BR1002/1003-CA Low-Cost OEM Pressure Transducer from Blue Ribbon Corp is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc or 0 to 10 Vdc output, as well as various electrical connection and pressure port options. Typical applications for the Model BR1002/1003-CA include offroad vehicle, HVAC/R, hydraulic and pneumatic control systems,
pumps and compressors, and industrial engine pressure monitoring.
| Model: | Model BR1001/1002/1003 | Range: | 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR), Gauge, Vacuum, and Absolute Pressure Reference Available | Certification: | CE | Warranty: | Product Warranty |
Model BR1001/1002/1003 Low-Cost OEM Pressure Transducer from Blue Ribbon Corp is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains.
Learn More
| Model: | Model BR9TW | Warranty: | Product Warranty |
• Designed for use with all 9″ (228 mm) Industrial thermometers
• Allows for easy replacement of thermometer without interruption of the industrial process
• Protects thermometer from exposure to the process media
• 1-year warranty
SEE DATA SHEET FOR MORE FEATURES
Learn More
| Model: | Series 6000 Diaphragm Seal | Warranty: | Product Warranty |
Series 6000 Diaphragm Seal from Blue Ribbon Corp is a lightweight, all-stainless steel, welded one-piece diaphragm seal or isolation device, used to provide economical protection of pressure sensing instrumentation from measured media. The Series is designed for small instrumentation ranging from vaccuum to 2500 PSI. It also provides protection for gauges and measuring instruments in dial sizes ranging from 1½” to
3½”, as well as in space-limited applications.
Email Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your Blue Ribbon Corp Factory Rep or Local Distributor using the links below.
