Price:$88.46 – $343.94
| Product Specs | |
|---|---|
| Model: Model BR300 | |
| Range: 30/0" VAC through 0/15,000 - See Data Sheet For Full List of Ranges | |
| Case: Stainless Steel | |
| Internals: 316 ST/ST Internals | |
| Accuracy: 1.6% | |
| Fill: Dry | |
| Bezel: Bayonet | |
| Returns not covered by warranty are subject to 20% restock fee. | |

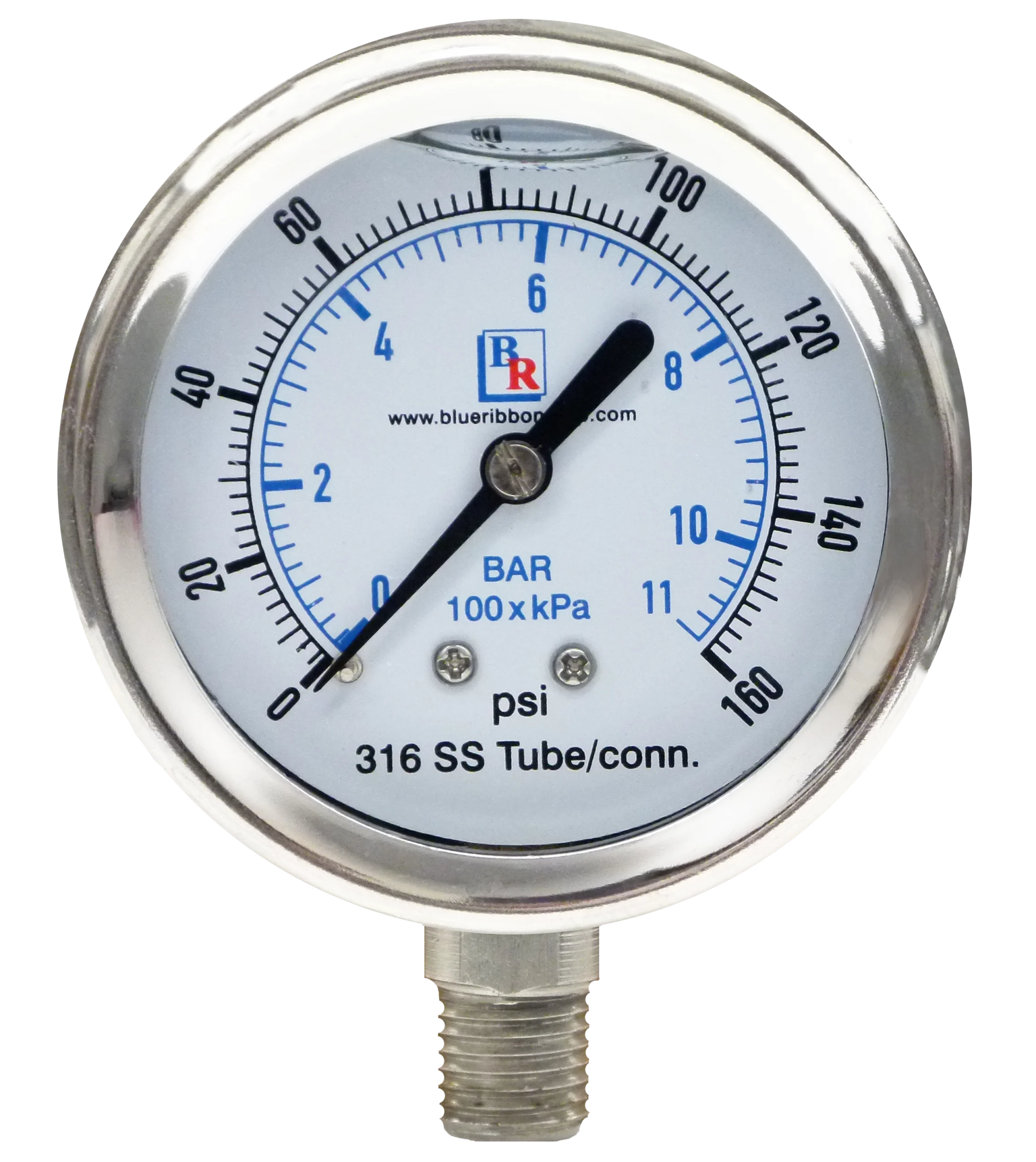

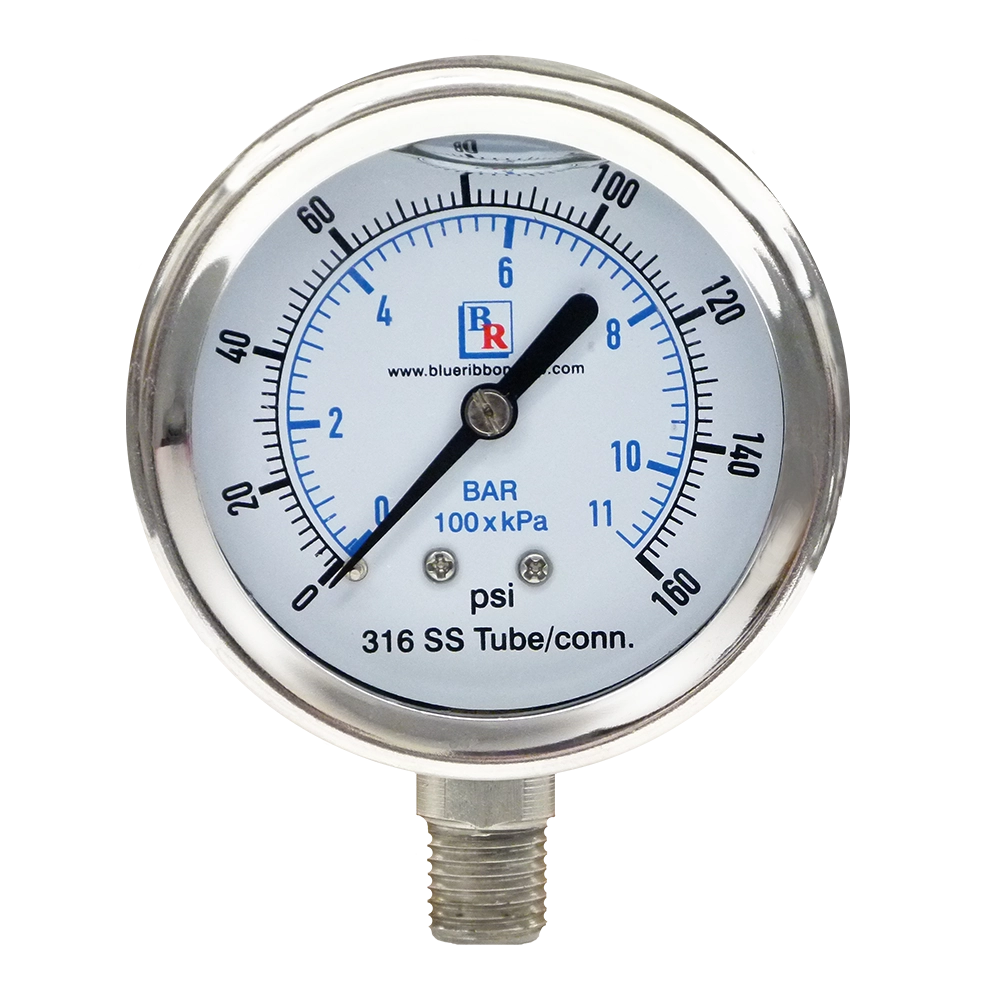

Model BR300 All Stainless Steel Gauge Series from Blue Ribbon Corp is a high-quality dry or liquid-filled, all stainless steel back or bottom mount gauge for applications where brass may not be an option.
Model BR300 All Stainless Steel Gauge Series from Blue Ribbon Corp is a high-quality dry or liquid-filled, all stainless steel back or bottom mount gauge for applications where brass may not be an option.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Markets | Fluid Power, Industrial, Mechanical, MRO Supply, Oil & Gas/Process, Plumbing, Water Treatment |
| Gauge Pressure Ranges | |
| Size | |
| Connection | 1/2" NPT Back, 1/2" NPT Bottom, 1/4" NPT Back, 1/4" NPT Bottom |
| Range | 0-10,000 psi/bar, 0-100 psi/bar, 0-1000 psi/bar, 0-15,000 psi/bar, 0-1500 psi/bar, 0-160 psi/bar, 0-20,000 psi/bar, 0-200 psi/bar, 0-2000 psi/bar, 0-30 psi/bar, 0-300 psi/bar, 0-3000 psi/bar, 0-400 psi/bar, 0-5000 psi/bar, 0-60 psi/bar, 0-600 psi/bar, 30"-0-100 psi/bar, 30"-0-15 psi/bar, 30"-0-160 psi/bar, 30"-0-200 psi/bar, 30"-0-30 psi/bar, 30"-0-60 psi/bar, 30"-0-300 psi/bar, 30" hg vac, 0-15 psi/bar |
Items reflect current stock on hand. Current stock will ship within 2 business days and any amount ordered in excess of current stock will be placed on back order with a 4-5 week lead time.
| Product Specifications | |
|---|---|
| Model: Model BR240/340 AI/AN/AF | |
| Range: 0 to 1 PSI thru 0 to 50K PSI *Some Options May Affect Range PSIG, PSIS PSIA, PSIV & Compound Ranges Available | |
| Certification: ATEX & IEC Approvals | |
| Product Specifications | |
|---|---|
| Model: Models BR111, BR211, BR311 | |
| Range: 0-30" WC thru 0 to 15K PSI (0 to 1,034 BAR) PSIG, PSIS, PSIA, PSIV & compound ranges available | |
| Product Specifications | |
|---|---|
| Model: Series 1000 Diaphragm Seal | |
| Product Specifications | |
|---|---|
| Model: Model BR1001/1002/1003 | |
| Range: 0 to 15 thru 0 to 10K PSI (0.3 thru 689 BAR), Gauge, Vacuum, and Absolute Pressure | |
