| Model: | Model BR313F | Range: | 20 INWC to 0-285 PSI | Warranty: | Product Warranty |

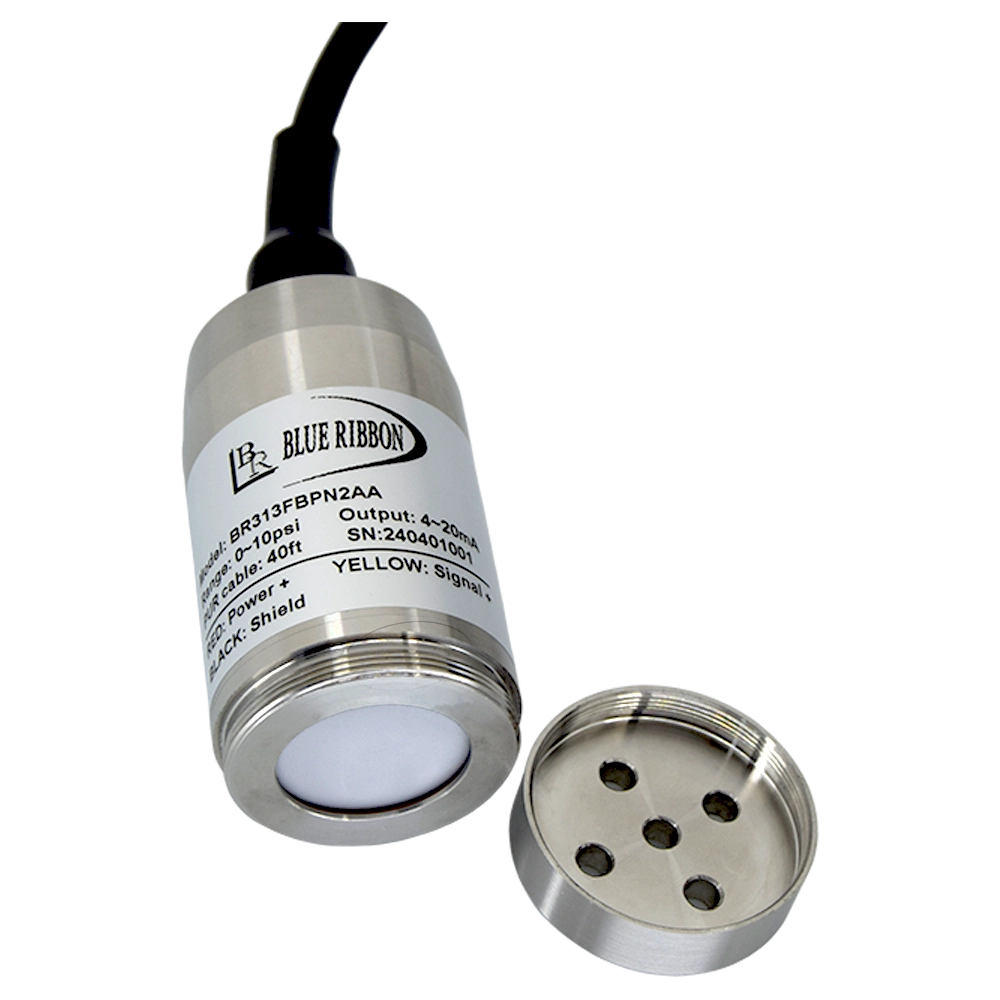

Model BR313F utilizes a flush 1.575” diameter ceramic sensor that inhibits grease and biosolid buildup typically found in water treatment level applications. This flush ceramic design saves cost by eliminating sensor clean-out found with many other non flush designs. The corrosion-resistant 304SS construction, and an integrated hydrophobic breather vent help provide years of maintenance-free service.
Model BR313F utilizes a flush 1.575” diameter ceramic sensor
that inhibits grease and biosolid buildup typically found in water
treatment level applications. This flush ceramic design saves cost
by eliminating sensor clean-out found with many other non flush
designs. The corrosion-resistant 304SS construction, and an integrated
hydrophobic breather vent help provide years of maintenance-free
service.
| Markets | |
|---|---|
| Transmitter Pressure Ranges |
| Model: | Model BR313S | Range: | 0-20” WC thru 500 PSI (50 MBAR to 35 BAR) | Warranty: | Product Warranty |
Model BR313S Slim Submersible Level Transmitter from Blue Ribbon Corporation has all of the same features as our popular BR313L, but with a slim 0.685” (17.4 mm) diameter housing for applications that have limited installation space. All Blue Ribbon submersible level transmitters are built with a rugged leak-proof stainless steel construction, lightning surge protection and an integrated hydrophobic filter to provide accurate level measurement with years of corrosion-free service for all types of applications.
Learn More
| Model: | MODELS 111X/P, 211X/P, 311X/P & 311N/AN/GN | Range: | 0 to 5 PSI thru 0 to 75K PSI (0 to 0.3 BAR thru 0 to 5,171 BAR) (PSIG, PSIS, PSIA, PSIV & compound ranges available) | Warranty: | Product Warranty |
Blue Ribbon Model 11 Series provides a rugged solution in hazardous approved areas. The all welded, stainless steel design provides years of reliable service in some of the harshest applications.
Learn More
| Model: | Model BR1002/1003 | Range: | 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR), Gauge, Vacuum, and Absolute Pressure Reference Available | Warranty: | Product Warranty |
The Model BR1002/1003 Low-Cost OEM Pressure Transducer from Blue Ribbon Corp is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc or 0 to 10 Vdc output, as well as various electrical connection and pressure port options. Typical applications for the Model BR1002/1003 include off-road
vehicle, HVAC/R, hydraulic and pneumatic control systems, pumps and compressors, and industrial engine pressure monitoring.
| Model: | Series 3000 PVC Diaphragm Seal | Warranty: | Product Warranty |
Series 3000 PVC Diaphragm Seal from Blue Ribbon Corp is a Teflon diaphragm seal or isolation device with PVC construction, used to provide economical protection of pressure sensing instrumentation from measured media. This Series is particularly useful for the economical protection of instrumentation from corrosion and clogging, and offers an option for application where some materials may be limited by corrosion.
Learn More
| Model: | Model BR313G | Range: | • 0 to 3 PSI thru 0 to 500 PSI (207 mBAR thru 35 BAR) • 0 to 6.5 FTWC thru 0 to 1150 FTWC (2 mWC thru 350 mWC) | Warranty: | Product Warranty |
The Model BR313G utilizes an all PVDF housing (titanium housing optional) with ceramic sensing element to provide a highly corrosion resistant level sensor. This series provides reliable performance in hazardous environments with aggressive chemicals for years of trouble free service.
Learn More
| Model: | Series 6000 Diaphragm Seal | Warranty: | Product Warranty |
Series 6000 Diaphragm Seal from Blue Ribbon Corp is a lightweight, all-stainless steel, welded one-piece diaphragm seal or isolation device, used to provide economical protection of pressure sensing instrumentation from measured media. The Series is designed for small instrumentation ranging from vaccuum to 2500 PSI. It also provides protection for gauges and measuring instruments in dial sizes ranging from 1½” to
3½”, as well as in space-limited applications.
Email Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your Blue Ribbon Corp Factory Rep or Local Distributor using the links below.
