| Model: | Model BR901M-20ST | Range: | Over-pressure Limit: 25% full scale value; Working Pressure: Maximum 70% of full scale value | Warranty: | Product Warranty |

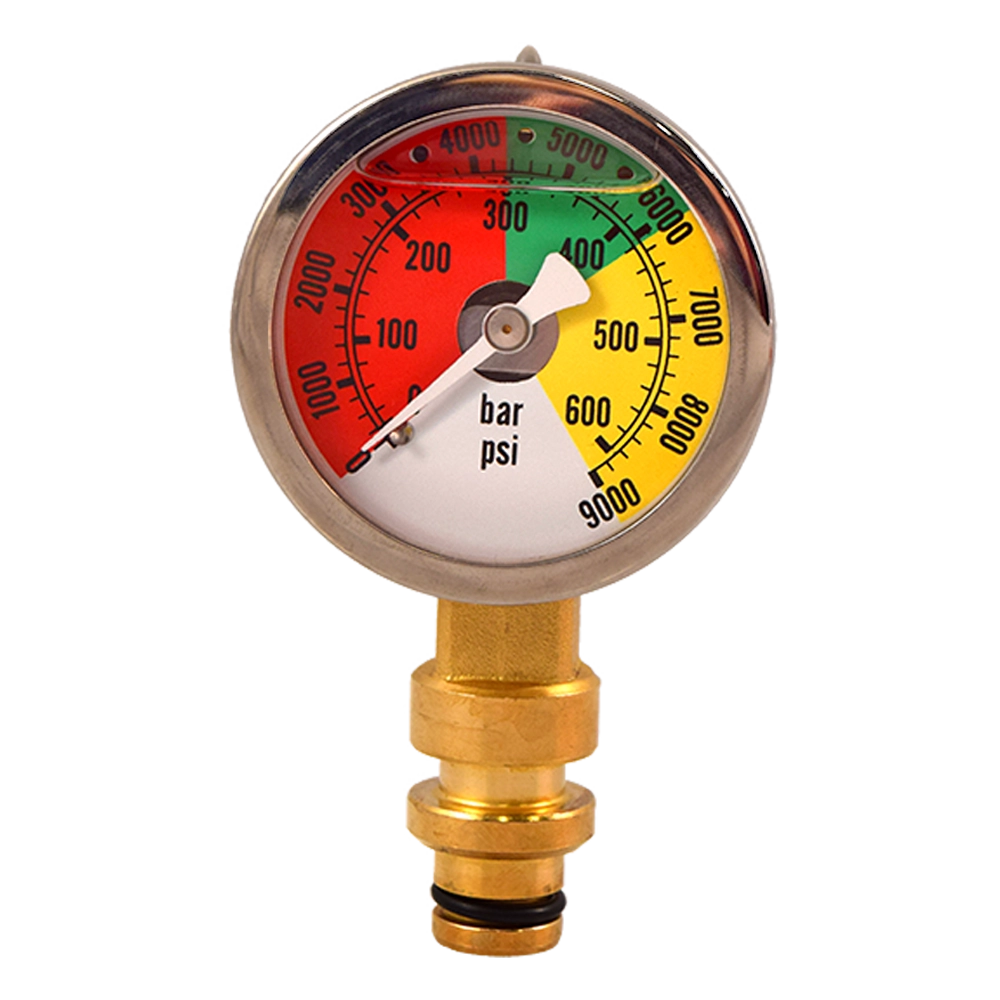

Model BR901M-20ST Forged Brass Case Mining Gauge from Blue Ribbon Corp
Features:
• Rugged, 2” (50mm) forged brass case and connection
• Forged brass case and socket
• Glycerin Filled
• ⅜” Steck-O connection
• 3 colored zone dial for easier pressure reading
• 0-9,000 psi/bar
• ASME B40.100 compliant
Model BR901M-20ST Forged Brass Case Mining Gauge from Blue Ribbon Corp
Features:
• Rugged, 2” (50mm) forged brass case and connection
• Forged brass case and socket
• Glycerin Filled
• ⅜” Steck-O connection
• 3 colored zone dial for easier pressure reading
• 0-9,000 psi/bar
• ASME B40.100 compliant
| Markets | |
|---|---|
| Gauge Pressure Ranges |
| Model: | Models BR111, BR211, BR311 | Range: | 0-30" WC thru 0 to 15K PSI (0 to 1,034 BAR) PSIG, PSIS, PSIA, PSIV & compound ranges available | Warranty: | Product Warranty |
The Model BR111/211/311 from Blue Ribbon Corp is a family of industrial grade pressure transducers. These strain gauge-based sensors are expressly designed to withstand the shock, vibration and pressure spikes common to most hydraulic and pneumatic control systems. The highly rugged, all-welded stainless steel design of the Model BR111/211/311 offers high corrosion resistance, making the sensors an ideal choice for demanding oil & gas, steelworks, rolling mills and process control applications. Units are
also available with optional 10X proof pressure for extended worry-free service life within challenging environments.
| Model: | BRMG | Range: | 0 to 10K PSI thru 0 to 15K PSI (690 thru 1,034 BAR) | Warranty: | Product Warranty |
Model BRMG Mud Gauge Diaphragm Type FEATURES:
• Pressure range from 0 to 10K PSI thru 0 to 15K PSI (690 thru 1,034 BAR)
• Socket and case welded for high vibration and corrosive service
• Fixed pointer and movable dial
• 4” glycerine filled dial
• Weather proof/anti-corrosive gun metal casting
• Easy-to-read analog display
| Model: | Model BR112, BR212, BR312 | Range: | 0 to 20K thru 0 to 150K PSI (1,379 thru 10,342 BAR) | Warranty: | Product Warranty |
Model BR112, 212, 312 Ultra-High Pressure Transducer from Blue Ribbon Corp is offered in a single piece sensor design with no welds or seals. All stainless steel construction and industry standard high pressure coned process connections are available in both English and Metric sizes.
Learn More
| Model: | Model BR300HP | Range: | 20,000 PSI to 50,000 PSI | Warranty: | Product Warranty |
Model BR300HP High Pressure Gauge from Blue Ribbon Corp is designed for use in Oil & Gas and Process applications where extremely high pressure measurement is required. This gauge can be used to monitor pressure up to 50,000 PSI.
Learn More
| Model: | Model BR313R | Range: | 0 to 40” WC thru 285 PSI (200 meters WC) | Warranty: | Product Warranty |
Model BR313R Slim Submersible Level Transmitter from Blue Ribbon Corp has all of the same features as our popular BR313L, but with a slim 0.622” (15.8 mm) diameter housing for those applications that have limited installation space. All Blue Ribbon submersible level transmitters are built with a rugged leakproof stainless steel construction, lightning surge protection and an integrated hydrophobic filter to provide accurate level measurement with years of corrosion-free service for all types of level applications.
Learn More
| Model: | Model BR313G | Range: | • 0 to 3 PSI thru 0 to 500 PSI (207 mBAR thru 35 BAR) • 0 to 6.5 FTWC thru 0 to 1150 FTWC (2 mWC thru 350 mWC) | Warranty: | Product Warranty |
The Model BR313G utilizes an all PVDF housing (titanium housing optional) with ceramic sensing element to provide a highly corrosion resistant level sensor. This series provides reliable performance in hazardous environments with aggressive chemicals for years of trouble free service.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your Blue Ribbon Corp Factory Rep or Local Distributor using the links below.
