| Model: | Test Port Plugs | Warranty: | Product Warranty |

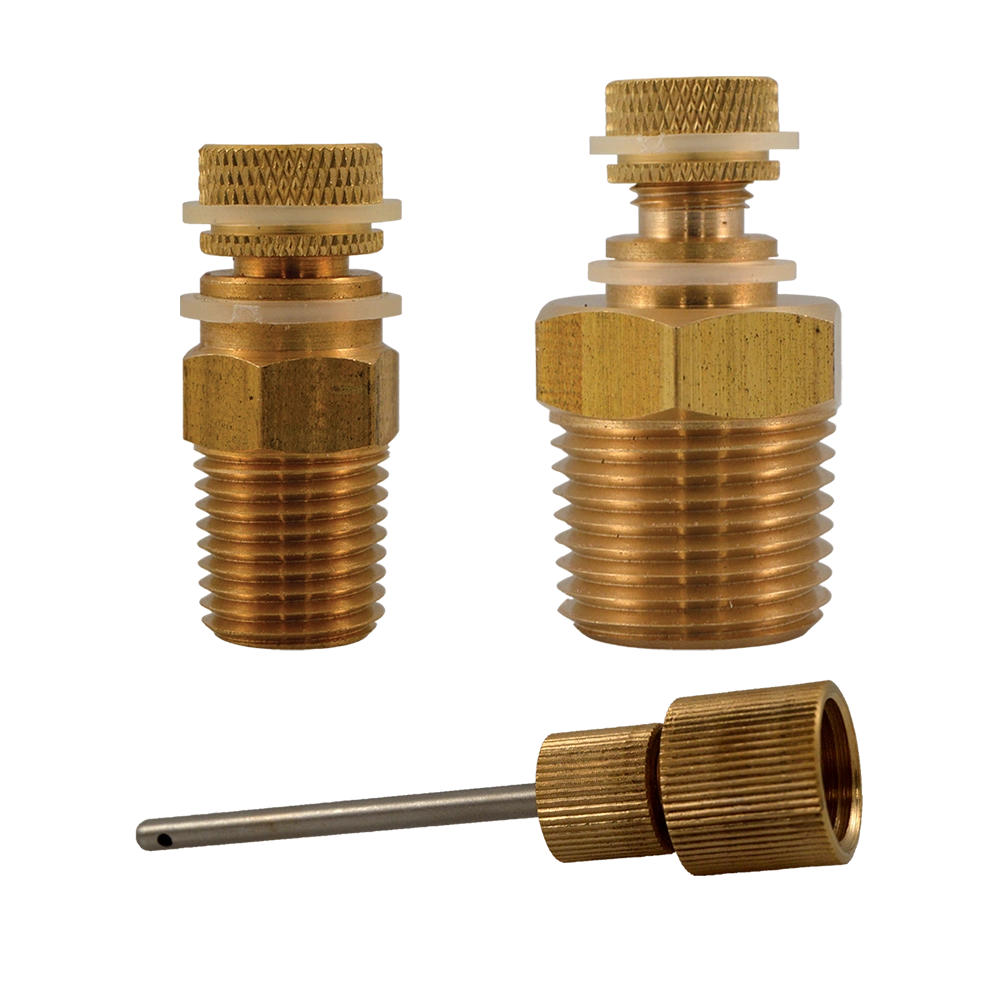

Test Port Plugs from Blue Ribbon Corp are designed for permanent installation into piping systems for quick access during maintenance checks. They are designed to be used with gauge adapters for pressure tests or pocket thermometer insertion without shutting down or draining the system. Models are available with the Nordel or Neoprene Cores, Brass or Stainless Steel bodies, in sizes ranging from ⅛” NPT through ½” NPT. Cap and chain included.
Test Port Plugs from Blue Ribbon Corp are designed for permanent installation into piping systems for quick access during maintenance checks. They are designed to be used with gauge adapters for pressure tests or pocket thermometer insertion without shutting down or draining the system. Models are available with the Nordel or Neoprene Cores, Brass or Stainless Steel bodies, in sizes ranging from ⅛” NPT through ½” NPT. Cap and chain included.
| Markets |
|---|
| Model: | Model BC001 | Range: | 0-5 thru 0-500 PSI (0-10 FTWC thru 0-1153 FTWC) 0-3 thru 0-335 meters WC | Certification: | Optional FM/CSA Hazardous Approvals | Warranty: | Product Warranty |
Model BC001 Birdcage® Submersible Level Transmitter originally designed by Blue Ribbon Corp, is a highly accurate level transmitter designed specifically for sludge level monitoring and pump lift stations. Its all stainless steel design incorporates a 3-inch diameter clog-resistant sensing diaphragm and corrosion resistant protective baffle plate. These features, combined with over 25 years of proven field service, make the Blue Ribbon Birdcage® the industry standard in water and wastewater level measurement.
Learn More
| Model: | Model BR313S | Range: | 0-20” WC thru 500 PSI (50 MBAR to 35 BAR) See Model 313SL | Warranty: | Product Warranty |
OBSOLETE – Please see Model BR313SL
Model BR313S Slim Submersible Level Transmitter from Blue Ribbon Corporation has all of the same features as our popular BR313L, but with a slim 0.685” (17.4 mm) diameter housing for applications that have limited installation space. All Blue Ribbon submersible level transmitters are built with a rugged leak-proof stainless steel construction, lightning surge protection and an integrated hydrophobic filter to provide accurate level measurement with years of corrosion-free service for all types of applications.
Learn More
| Model: | Model BR313G | Range: | • 0 to 3 PSI thru 0 to 500 PSI (207 mBAR thru 35 BAR) • 0 to 6.5 FTWC thru 0 to 1150 FTWC (2 mWC thru 350 mWC) | Warranty: | Product Warranty |
The Model BR313G utilizes an all PVDF housing (titanium housing optional) with ceramic sensing element to provide a highly corrosion resistant level sensor. This series provides reliable performance in hazardous environments with aggressive chemicals for years of trouble free service.
Learn More
| Model: | Model BR300HP | Range: | 20,000 PSI to 50,000 PSI | Warranty: | Product Warranty |
Model BR300HP High Pressure Gauge from Blue Ribbon Corp is designed for use in Oil & Gas and Process applications where extremely high pressure measurement is required. This gauge can be used to monitor pressure up to 50,000 PSI.
Learn More
| Model: | Model BR1002/1003-CA | Range: | 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR), gauge, vacuum, and absolute pressure reference available | Warranty: | Product Warranty |
The Model BR1002/1003-CA Low-Cost OEM Pressure Transducer from Blue Ribbon Corp is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc or 0 to 10 Vdc output, as well as various electrical connection and pressure port options. Typical applications for the Model BR1002/1003-CA include offroad vehicle, HVAC/R, hydraulic and pneumatic control systems,
pumps and compressors, and industrial engine pressure monitoring.
| Model: | BR140 | Range: | 0-100 PSID (0-7 bar), 3,000 PSIG (200 bar) | Warranty: | Product Warranty |
Model BR140 Diaphragm Type Differential Pressure Gauge provides outstanding capabilities not previously available in modestly priced differential pressure gauge/switch. Ideally suited for use on dissimilar fluids and wet gas or fluids with a high concentration of solids, etc.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your Blue Ribbon Corp Factory Rep or Local Distributor using the links below.
