| Model: | Model BR306 | Range: | 0.4" WC to 14.5 PSI Differential Pressure Reference | Warranty: | Product Warranty |

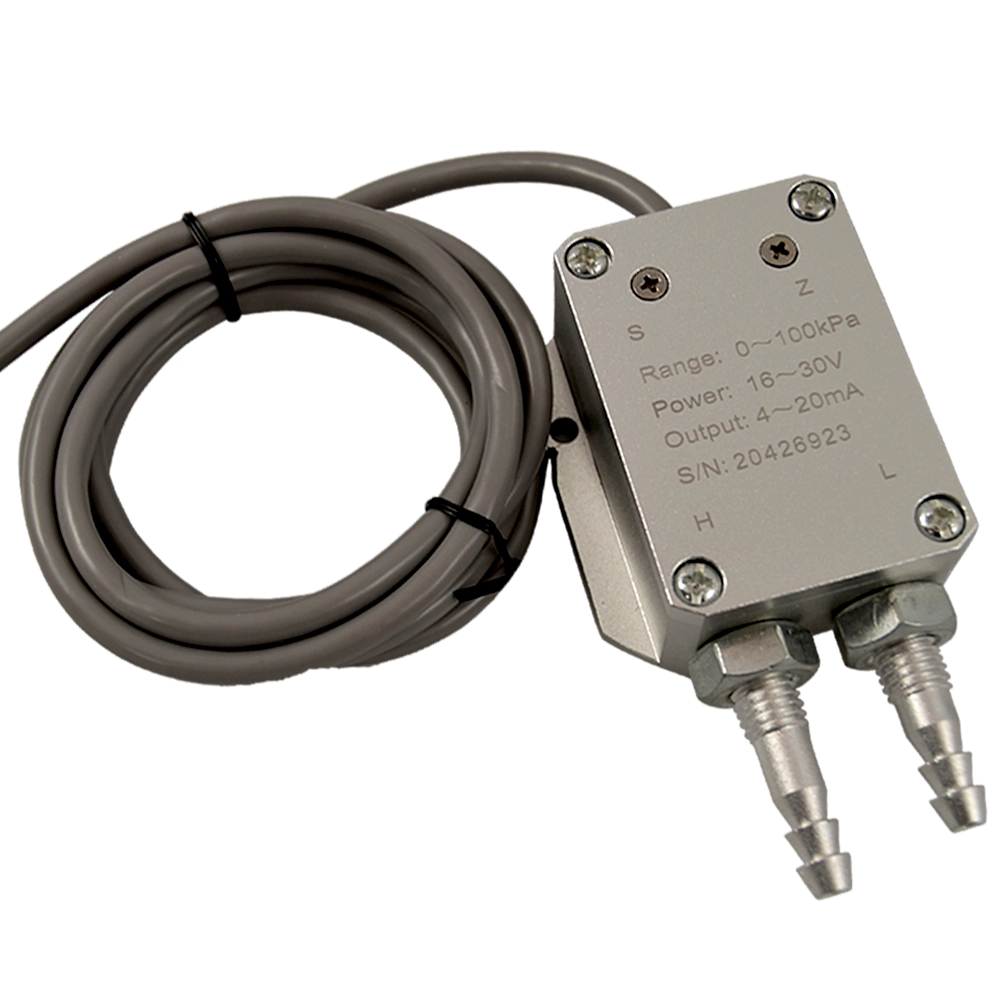

Model BR306 from Blue Ribbon Corp is a low cost, industrial grade
differential pressure transducer with aluminum or stainless steel
wetted parts and housing. Typical applications for the Model BR306
include boiler, ventilation, and air handlers.
Model BR306 from Blue Ribbon Corp is a low cost, industrial grade
differential pressure transducer with aluminum or stainless steel
wetted parts and housing. Typical applications for the Model BR306
include boiler, ventilation, and air handlers.
| Transmitter Pressure Ranges |
|---|
| Model: | Model BR240/340 AI/AN/AF | Range: | 0 to 1 PSI thru 0 to 50K PSI *Some Options May Affect Range PSIG, PSIS PSIA, PSIV & Compound Ranges Available | Certification: | ATEX & IEC Approvals | Warranty: | Product Warranty |
Model 40 series from Blue Ribbon Corp incorporates over 25 years of oil field proven design in a 1” diameter package. The 40 series provides a rugged solution for hazardous approved areas, especially where space constraints are a concern. Its all-welded stainless steel design will provide years of reliable service in some of the harshest environments.
Learn More
| Model: | Model BR112, BR212, BR312 | Range: | 0 to 20K thru 0 to 150K PSI (1,379 thru 10,342 BAR) | Warranty: | Product Warranty |
Model BR112, 212, 312 Ultra-High Pressure Transducer from Blue Ribbon Corp is offered in a single piece sensor design with no welds or seals. All stainless steel construction and industry standard high pressure coned process connections are available in both English and Metric sizes.
Learn More
| Model: | Model BR340-IM | Range: | 0-75 thru 0-750 PSI (5 thru 52 BAR) gauge, sealed gauge, absolute | Certification: | EX & IEC Approvals | Warranty: | Product Warranty |
The Model BR340-IM series from Blue Ribbon Corporation is a flush face mounted industrial pressure transmitter. It is expressly designed for higher viscosity media, particularly where such media can otherwise clog or damage traditional non-flush port sensor designs. The rugged, all-welded, Inconel design of the BR340-IM series allows for greater compatability with corrosive media. No zero offset is caused during sensor installation.
Learn More
| Model: | Model 313AI | Range: | • 0 to 2 PSI thru 0 to 300 PSI (138 mBAR thru 21 BAR) • 0 to 4 FTWC thru 0 to 700 FTWC (1219 mm thru 213 m WC) | Warranty: | Product Warranty |
Model 313AI | Submersible Level Transmitter for Hazardous Locations is an ATEX intrinsically safe submersible level transmitter, providing high-accuracy level measurements for hazardous locations. The corrosion-resistant 316L stainless steel construction, integrated lightning suppression and hydrophobic breather vent help provide years of maintenance-free service.
Learn More
| Model: | Models BR111, BR211, BR311 | Range: | 0-30" WC thru 0 to 15K PSI (0 to 1,034 BAR) PSIG, PSIS, PSIA, PSIV & compound ranges available | Warranty: | Product Warranty |
The Model BR111/211/311 from Blue Ribbon Corp is a family of industrial grade pressure transducers. These strain gauge-based sensors are expressly designed to withstand the shock, vibration and pressure spikes common to most hydraulic and pneumatic control systems. The highly rugged, all-welded stainless steel design of the Model BR111/211/311 offers high corrosion resistance, making the sensors an ideal choice for demanding oil & gas, steelworks, rolling mills and process control applications. Units are
also available with optional 10X proof pressure for extended worry-free service life within challenging environments.
| Model: | Model BR313F | Range: | 20 INWC to 0-285 PSI | Warranty: | Product Warranty |
Model BR313F Flush Submersible Level Transmitter utilizes a flush 1.06” flush ceramic diaphragm that inhibits grease and biosolid buildup typically found in water treatment level applications. This flush ceramic design saves cost by eliminating sensor clean-out found with many other non flush designs. The corrosion-resistant 304SS construction, and an integrated hydrophobic breather vent help provide years of maintenance-free service.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your Blue Ribbon Corp Factory Rep or Local Distributor using the links below.
