| Model: | Model BR313R | Range: | 0 to 40” WC thru 285 PSI (200 meters WC) | Warranty: | Product Warranty |

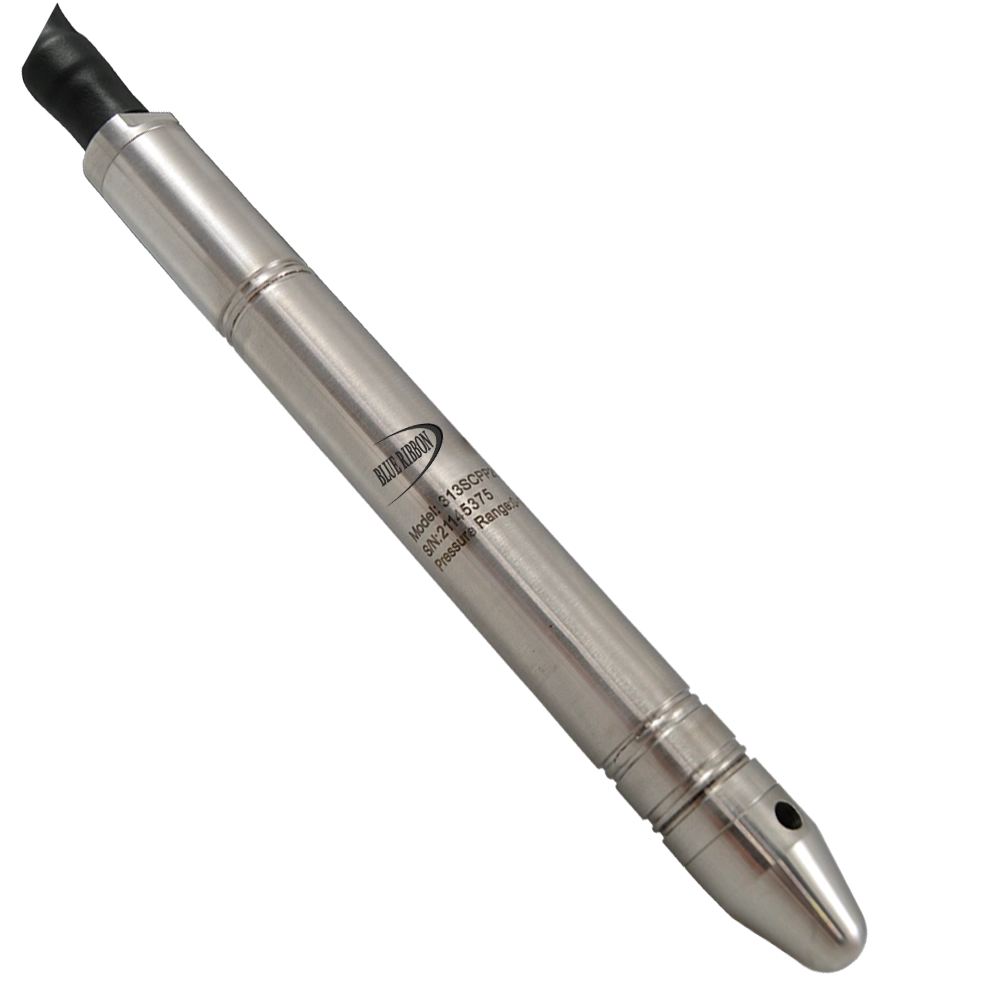

Model BR313R Slim Submersible Level Transmitter from Blue Ribbon Corp has all of the same features as our popular BR313L, but with a slim 0.622” (15.8 mm) diameter housing for those applications that have limited installation space. All Blue Ribbon submersible level transmitters are built with a rugged leakproof stainless steel construction, lightning surge protection and an integrated hydrophobic filter to provide accurate level measurement with years of corrosion-free service for all types of level applications.
Model BR313R from Blue Ribbon Corp has all of the same features
as our popular BR313L, but with a slim 0.622” (15.8 mm) diameter
housing for those applications that have limited installation space. All
Blue Ribbon submersible level transmitters are built with a rugged leakproof stainless steel construction, lightning surge protection and an
integrated hydrophobic filter to provide accurate level measurement
with years of corrosion-free service for all types of level applications.
| Markets | |
|---|---|
| Transmitter Pressure Ranges |
| Model: | Model BRTW | Warranty: | Product Warranty |
Model BRTW Bimetal Threaded Thermowells from Blue Ribbon Corporation are designed to protect the thermometer from possible exposure to process media that may be corrosive or under pressure. Thermowells also facilitate removal of the industrial thermometer without interruption of the process. Their durable design offers high reliability and media compatibility in a range of sizes and materials.
Learn More
| Model: | Model BR200 | Range: | 30/0" VAC through 0/15,000 - See Data Sheet For Full List of Ranges | Warranty: | Product Warranty |
Model BR200 Liquid Filled Gauge FEATURES:
• Dial Sizes: 1½”, 2″, 2½”, 4″, and 6″
• High quality line of liquid filled gauges, also available dry
• Glycerine fill dampens vibration to help extend the life of the gauge
• Bottom and back connections
• 1/8″, ¼”, and ½” (M)NPT
| Model: | Model BR313S | Range: | 0-20” WC thru 500 PSI (50 MBAR to 35 BAR) | Warranty: | Product Warranty |
Model BR313S Slim Submersible Level Transmitter from Blue Ribbon Corporation has all of the same features as our popular BR313L, but with a slim 0.685” (17.4 mm) diameter housing for applications that have limited installation space. All Blue Ribbon submersible level transmitters are built with a rugged leak-proof stainless steel construction, lightning surge protection and an integrated hydrophobic filter to provide accurate level measurement with years of corrosion-free service for all types of applications.
Learn More
| Model: | Model BR313G | Range: | • 0 to 3 PSI thru 0 to 500 PSI (207 mBAR thru 35 BAR) • 0 to 6.5 FTWC thru 0 to 1150 FTWC (2 mWC thru 350 mWC) | Warranty: | Product Warranty |
The Model BR313G utilizes an all PVDF housing (titanium housing optional) with ceramic sensing element to provide a highly corrosion resistant level sensor. This series provides reliable performance in hazardous environments with aggressive chemicals for years of trouble free service.
Learn More
| Model: | Series 7000 Welded Flanged Diaphragm Seal | Warranty: | Product Warranty |
Housing
• 316 SS, Monel, Hastelloy C, Titanium,
Tantalum, PVC, Carbon Steel and Teflon.
Upper Housing 316 SS and Carbon Steel
Connection
• ¼”, ½” NPT Female connection standard
• 1”, 1.5”, 2″ pipe size – 150# and 300#
pressure rating standard
Process Temperature
• 450 ºF (232 ºC)
• 400 ºF (204 ºC) [Teflon lined]
Two-Piece Construction
| Model: | Model BR1002/1003-CA | Range: | 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR), gauge, vacuum, and absolute pressure reference available | Warranty: | Product Warranty |
The Model BR1002/1003-CA Low-Cost OEM Pressure Transducer from Blue Ribbon Corp is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc or 0 to 10 Vdc output, as well as various electrical connection and pressure port options. Typical applications for the Model BR1002/1003-CA include offroad vehicle, HVAC/R, hydraulic and pneumatic control systems,
pumps and compressors, and industrial engine pressure monitoring.
Email Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your Blue Ribbon Corp Factory Rep or Local Distributor using the links below.
