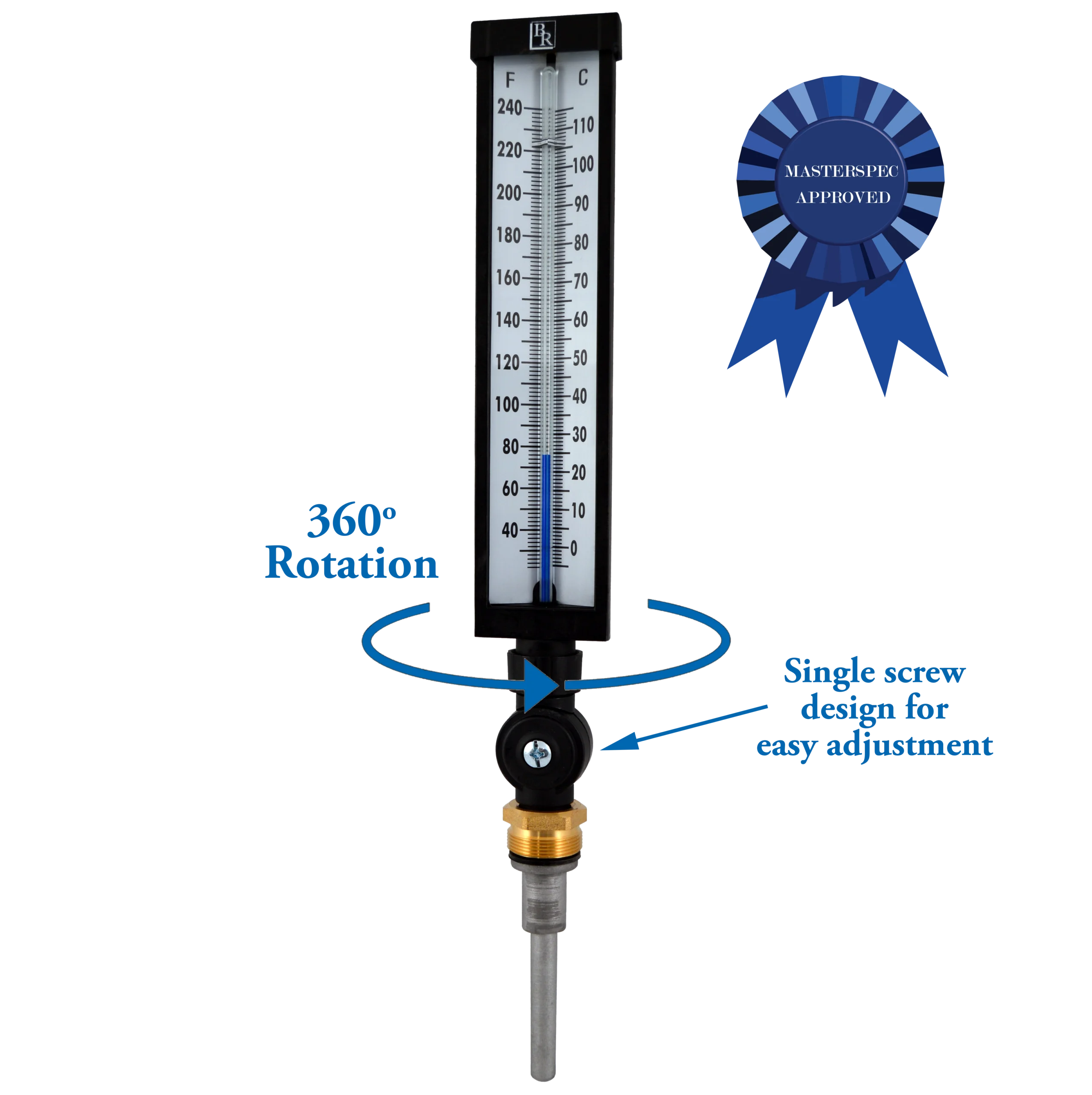

Model BR9A Industrial Thermometer 9″ Scale Adjustable Angle Type

Download Datasheet Request Quote
Model: Model BR9A
Warranty: Product Warranty

Model BR9A Industrial Thermometer 9″ Scale Adjustable Angle Type

FEATURES:

• Single screw design for easy adjustment and full 360° rotation
• Available in 3.5” and 6” stem lengths
• Blue spirit filled thermometer set inside V-shaped aluminum scale with high-contrast black on white numeric scale for easy reading

*SEE DATA SHEET FOR MORE FEATURES

Categories: , , Tags: , , , ,

Description

Model BR9A Industrial Thermometer 9″ Scale Adjustable Angle Type
BR5SL-T-003

FEATURES*:

• Single screw design for easy adjustment and full 360° rotation
• Available in 3.5” and 6” stem lengths
• Blue spirit filled thermometer set inside V-shaped aluminum scale with high-contrast black on white numeric scale for easy reading
• NIST traceable calibration with guaranteed accuracy to ±1 scale division
• Black enameled die cast aluminum construction with glass front minimizing dirt and dust build up for ranges up to 400 °F (200 °C)
• Optional plastic face
• 1¼–18 UNEF swivel nut connection assembly with tapered bulb chamber for proper well seating
• Available in Straight Form and 90° Back Angle

Additional information
